Configure II7 on Win 2008 R2

I was trying to use the built in HTTPReceive from BizTalk today, byt the IIS server was not configured to hadle the request. I got an access denied error when calling the BTSHTTPReceive.dll.


NOTE: You must be logged on as a member of the BizTalk Server Administrator goup

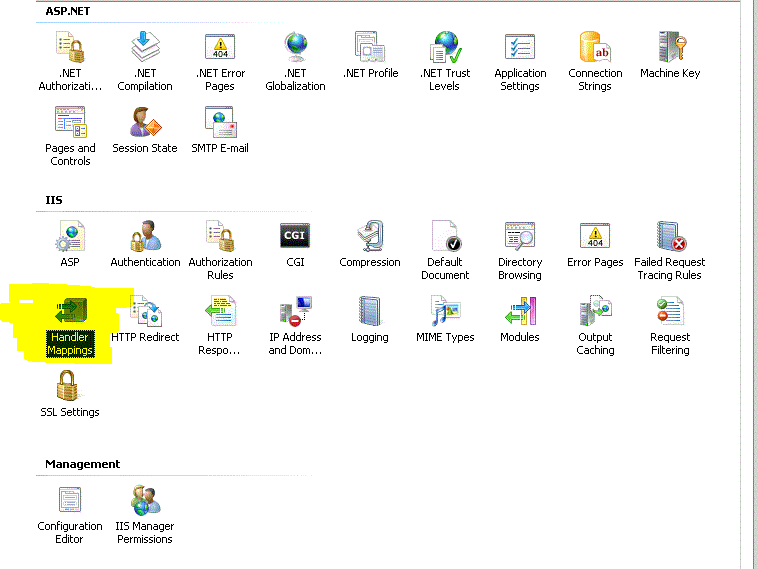

I had to configure the IIS server to be able to utillize this functionality. There is a good explenation on how to do this at microsoft. The way to to it is to add this under Handler Mappings

Choose Add Script Map,and set:


  • Request Path = BtsHttpReceive.dll
  • Executable = C:\Program Files\Microsoft BizTalk Server 2010\HttpReceive\BTSHTTPReceive.dll
  • Name = BizTalk HTTP Recevie
Under Request Restrictions set under the Verbs tag set POST and under the Access tab set Script

Then you haver to Create a new roule under ISAPI and CGI Restrictions: Add an new and set

  • ISAPI or CGI path = C:\Program Files\Microsoft BizTalk Server 2010\HttpReceive\BTSHTTPReceive.dll
  • Description = BizTalk HTTPReceive
  • and hok Allow extension path to execute
Restart IIS
